LG-13 Modular Lifting Columns with Remote Control Selection
LG-13 Modular Lifting Columns with Remote Control Selection
Model: LG-13-2RS-16-230-HS-24V-N
Couldn't load pickup availability
Column set quantity
| Control box | Product image | Input Voltage | Number of legs |
|---|---|---|---|
| FLTCON-1 |  |
110 VAC | 1 |
| FLTCON-2 |  |
110 VAC | 2 |
| FLTCON-2-24VDC |  |
24VDC | 2 |
| FLTCON-3 |  |
110 VAC | 3 |
| FLTCON-4 |  |
110 VAC | 4 |

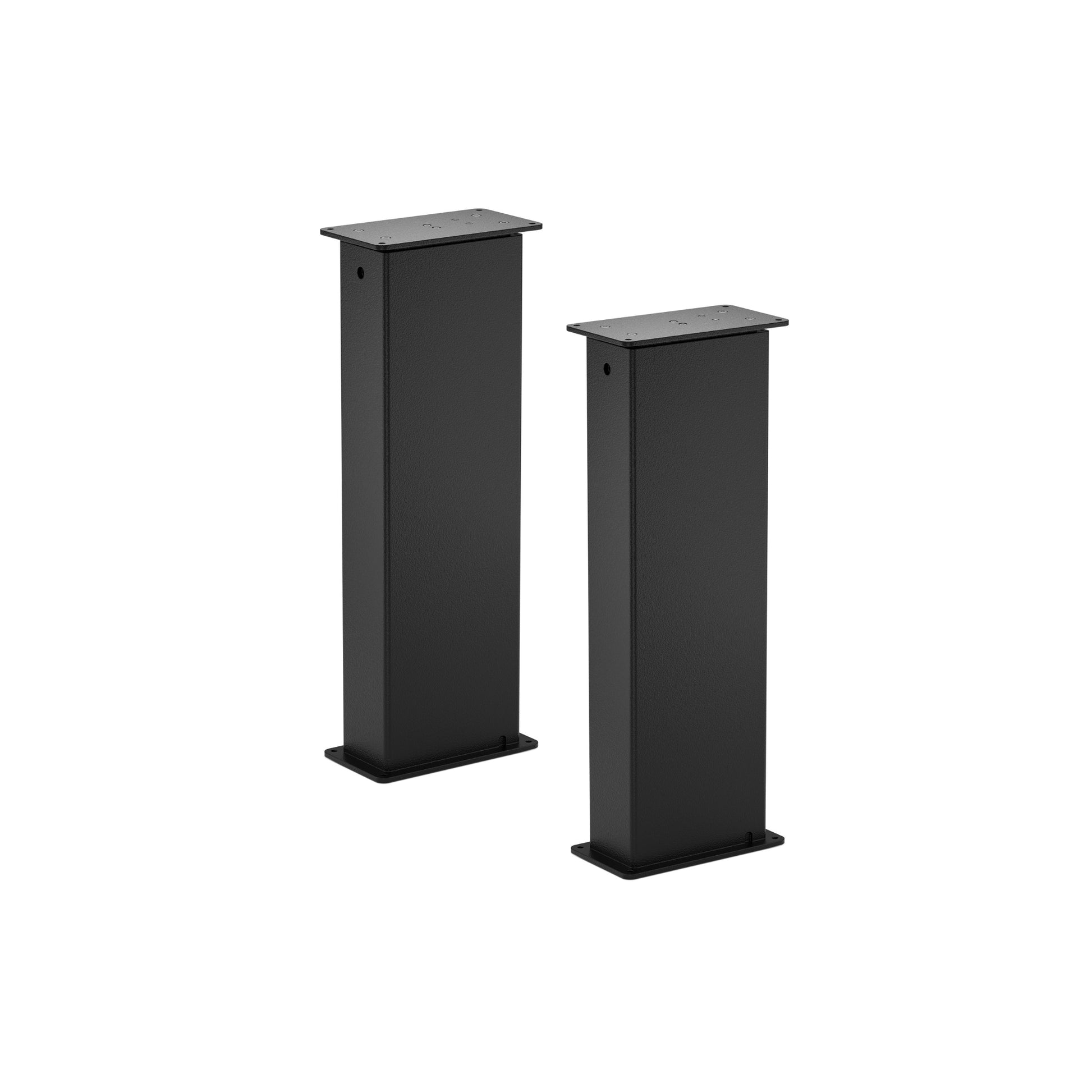

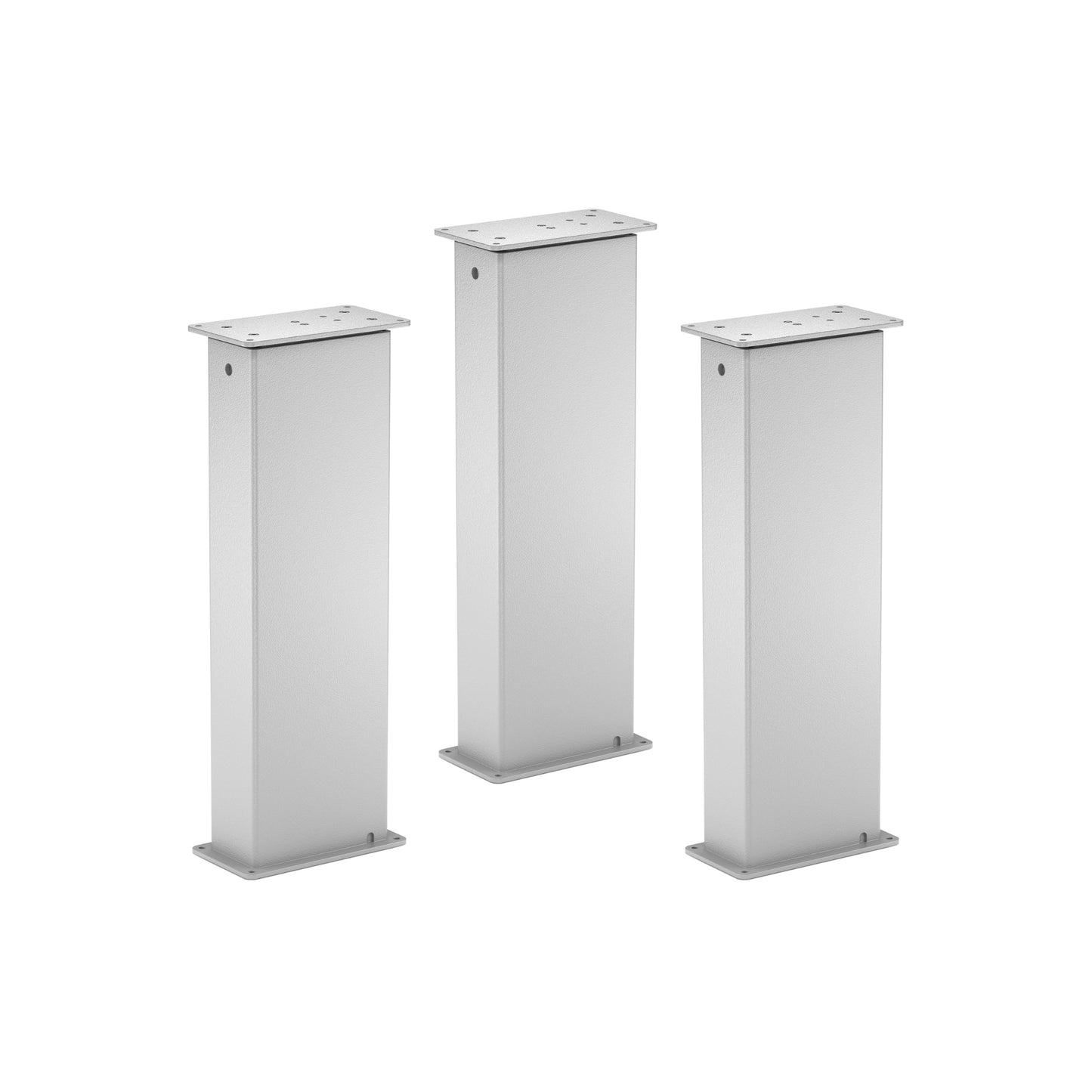

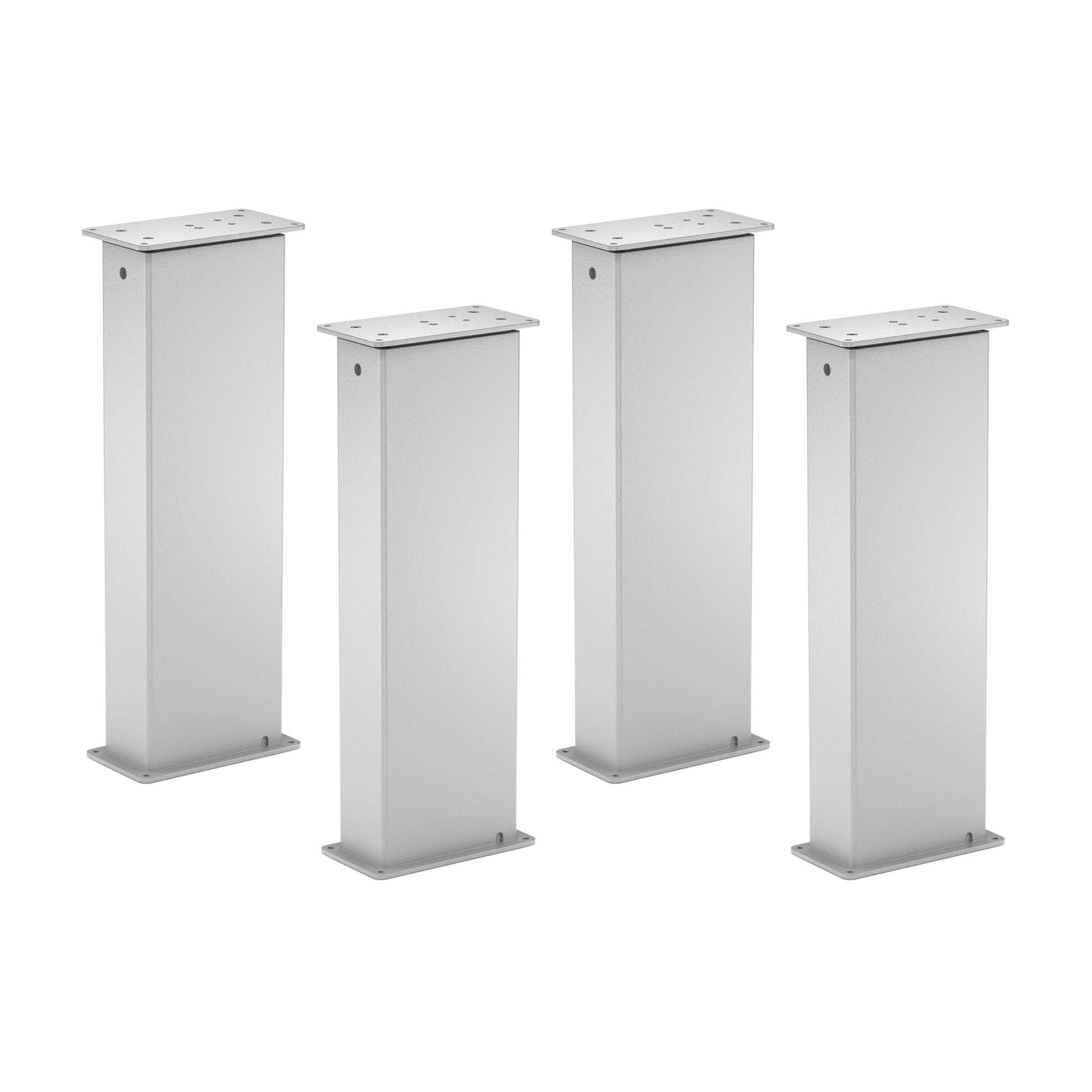

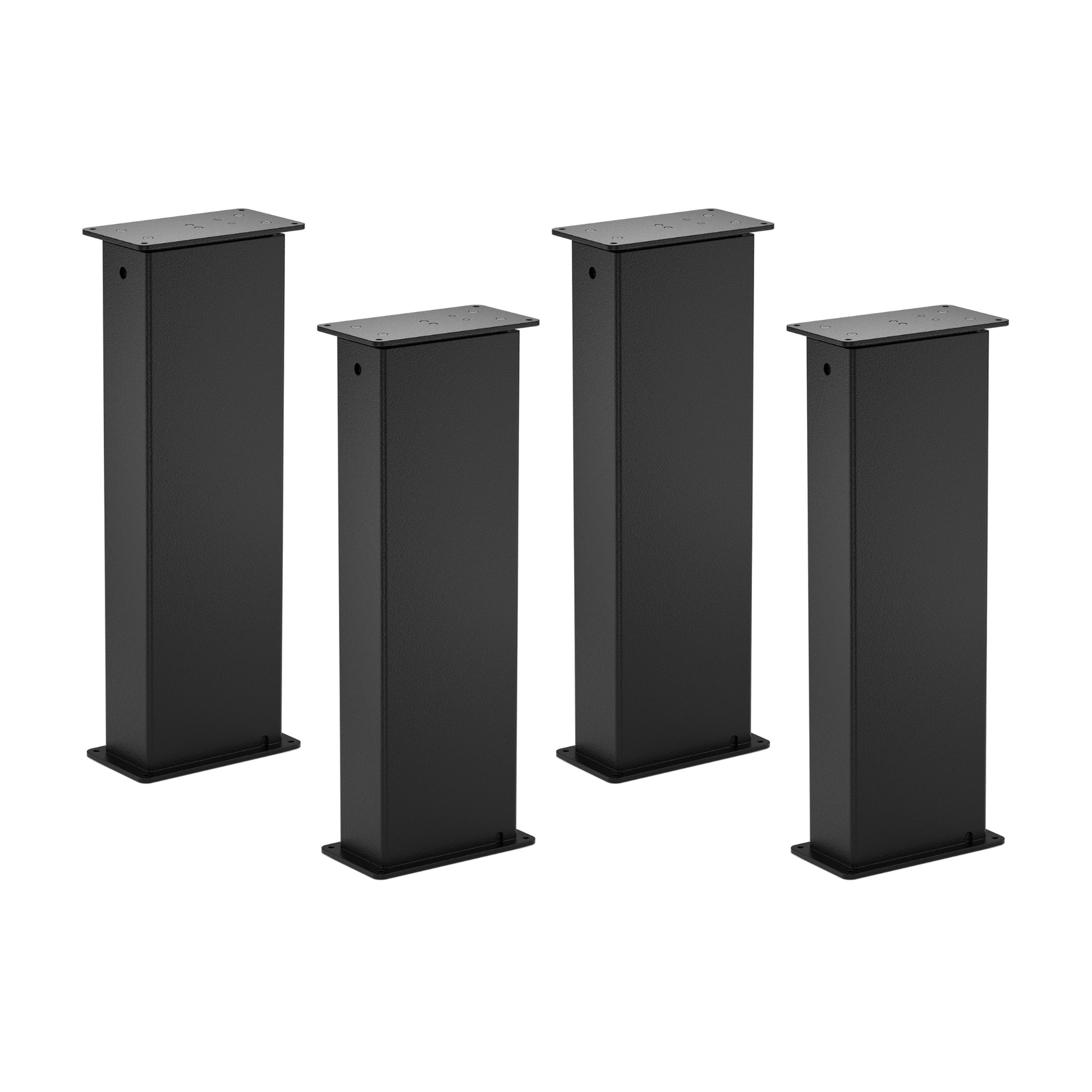

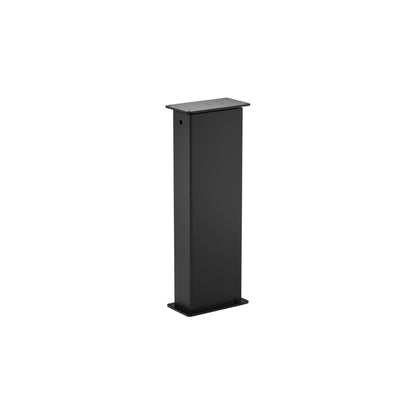

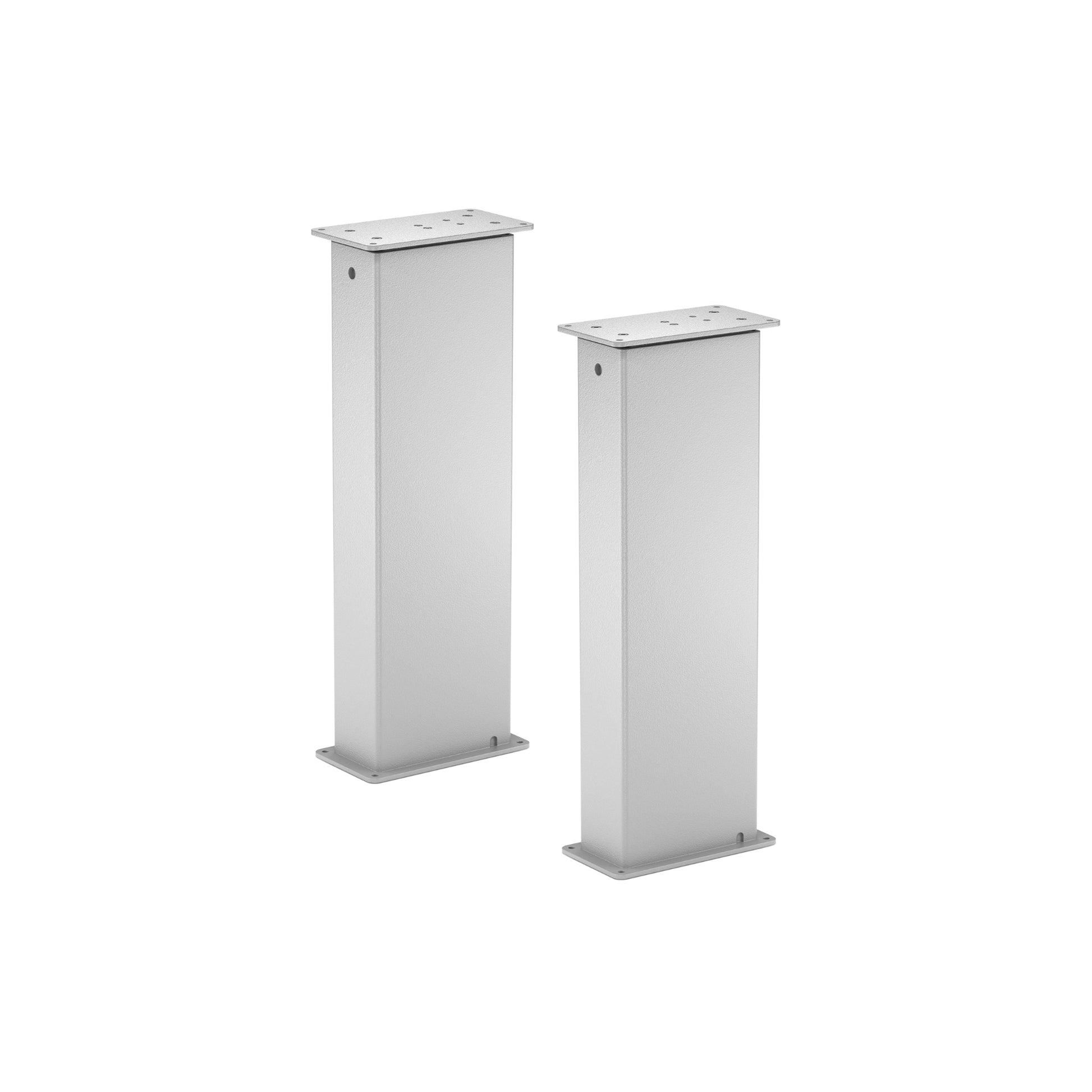

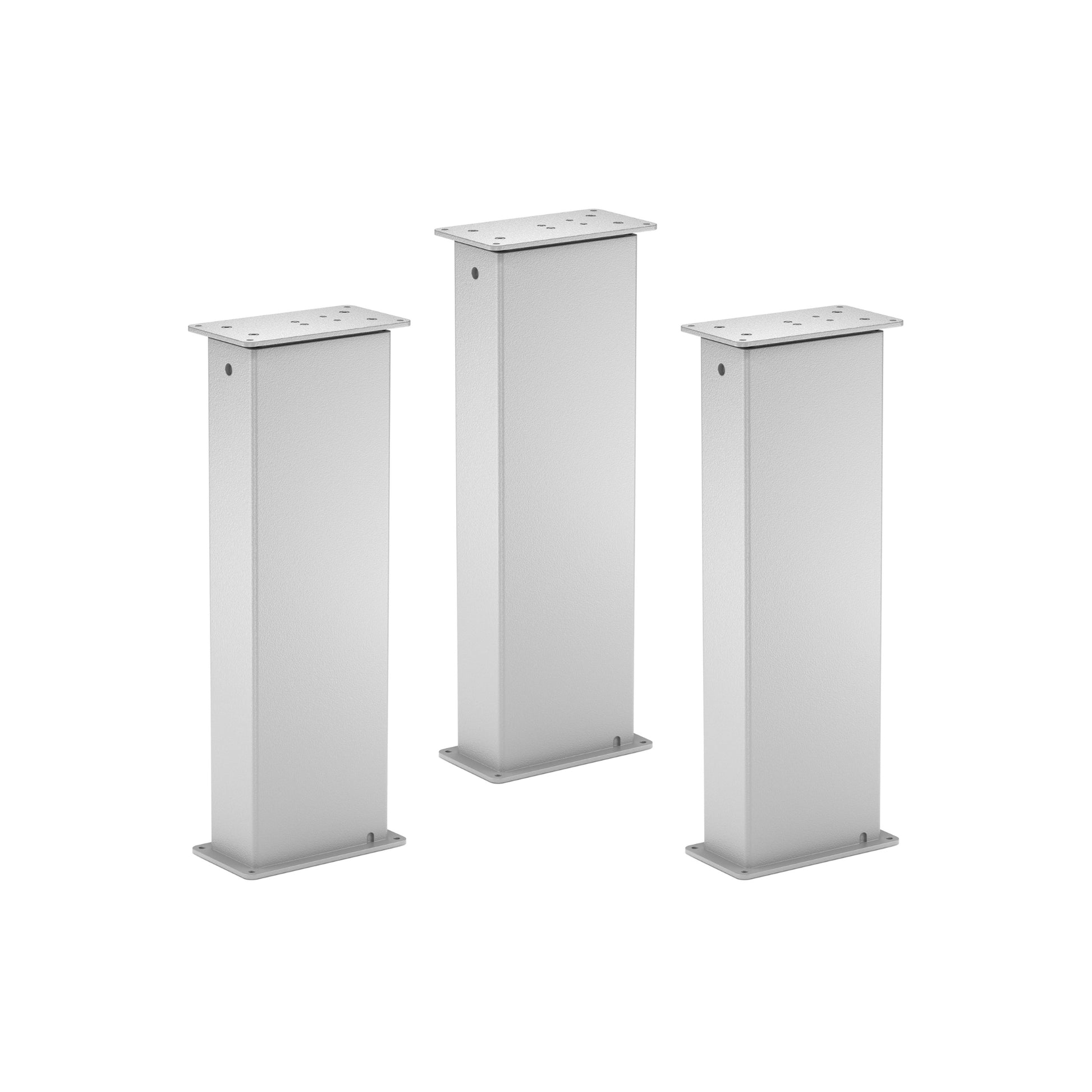

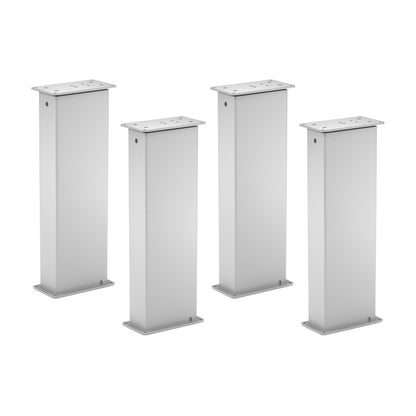

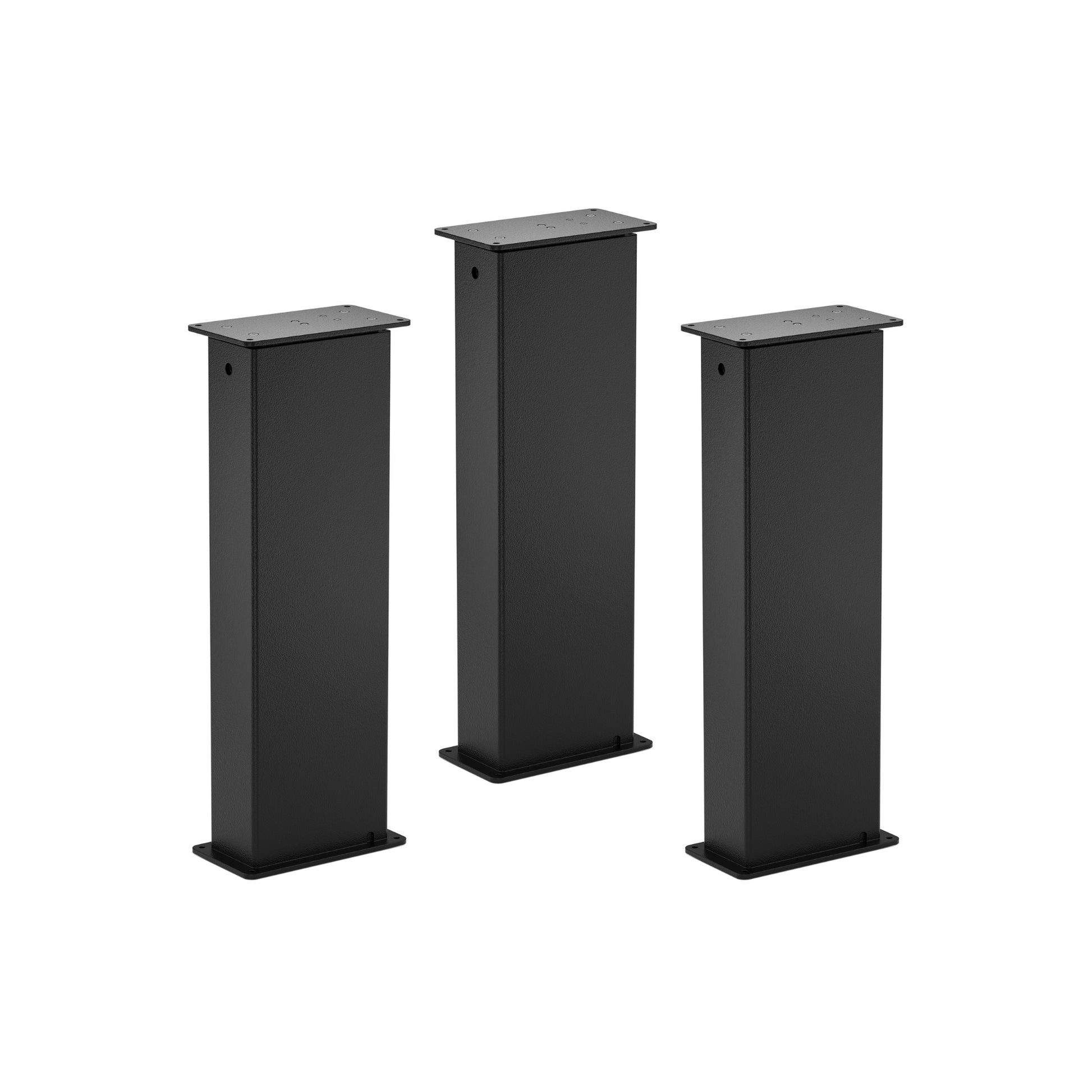

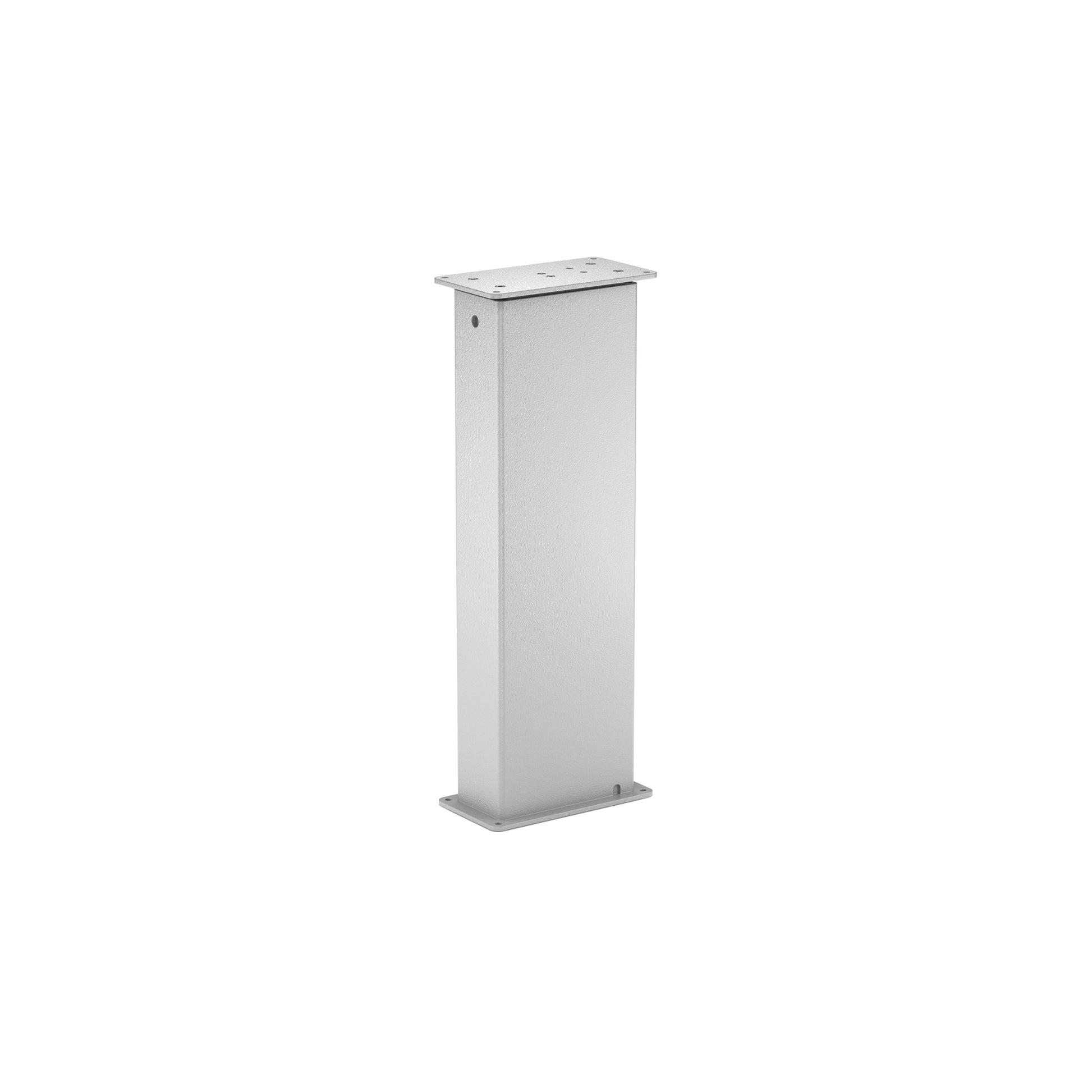

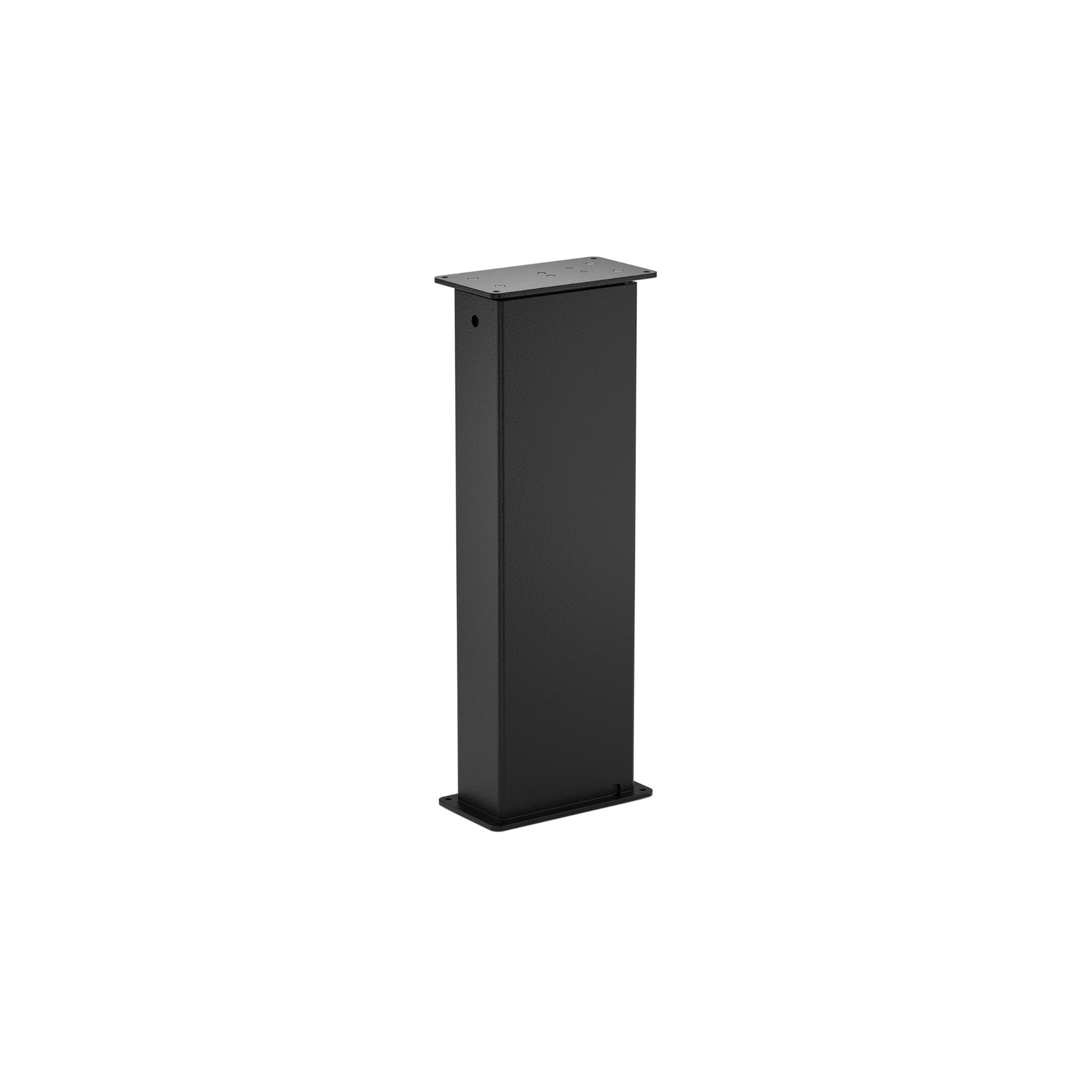

The LG-13-2RS-16-230-HS-24V are single unit modular lifting columns that can be paired with our remotes and FLTCON series of control boxes that can handle up to 4 legs in a single control system. This column is capable of producing up to 230 lbs of force, allowing for customizable leg configurations that can handle a variety of different setups. Designed with a rectangle lifting column shape and internally housed motors for a slim form factor, this 2 stage model also has a height range from 21.5" to 37.2".
Select from our large range of remote options and enjoy all the unique features of our different wired personalized remote control choices that can be used together with wireless remotes for extra convenience. Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a wiring diagram.
The LG-13-2RS-16-230-HS-24V are single unit modular lifting columns that can be paired with our remotes and FLTCON series of control boxes that can handle up to 4 legs in a single control system. This column is capable of producing up to 230 lbs of force, allowing for customizable leg configurations that can handle a variety of different setups. Designed with a rectangle lifting column shape and internally housed motors for a slim form factor, this 2 stage model also has a height range from 21.5" to 37.2".
Select from our large range of remote options and enjoy all the unique features of our different wired personalized remote control choices that can be used together with wireless remotes for extra convenience. Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a wiring diagram.
| Input Voltage | 24 VDC |
| Travel Distance | 15.8" |
| Height Range | 21.5" to 37.2" |
| Lifting Capacity | 230 lbs |
| Speed | 0.55"/s |
| Lifting Mechanism | Brushed DC Motor |
| Stages | 2 |
| Shape | Rectangular |
| Color | Silver, Black |
| Number of Remote Options | Various (with Progressive Automations Control Box) |
| Leveling | None |
| Material | Aluminum Alloy |
| Duty Cycle | 10% (2 minutes on, 18 minutes off) |
| Noise Level | <55dB from 1.5m |
| Protection Level | IP43 |
| Warranty | 18 Months |
| Unit Weight | 17.8 lb |
| Energy Saving Mode | More Info |
| Programmable Memory Presets | More Info |
| Charging Port | More Info |
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Read MoreData Sheets

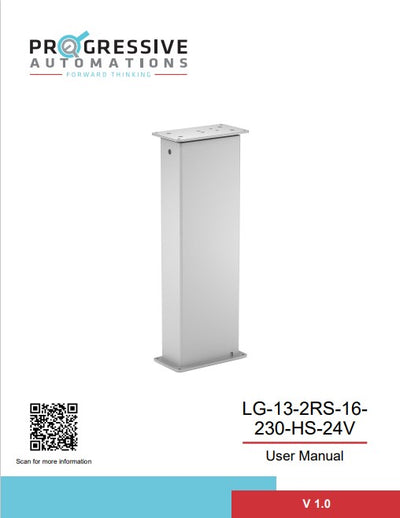

LG-13 Data sheet
2D/3D models
