Relay - 24VDC - SPDT - 30A
Relay - 24VDC - SPDT - 30A
Model: AC-31-30-24
Couldn't load pickup availability

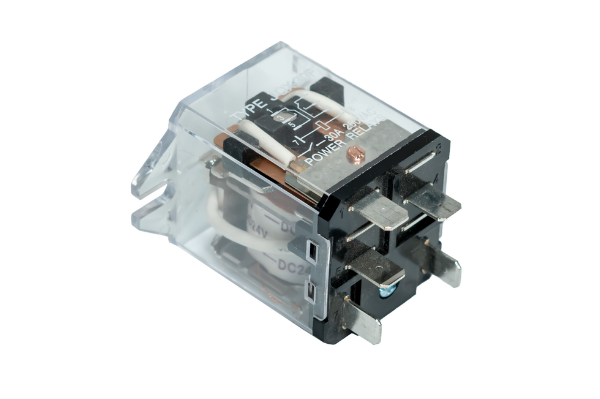

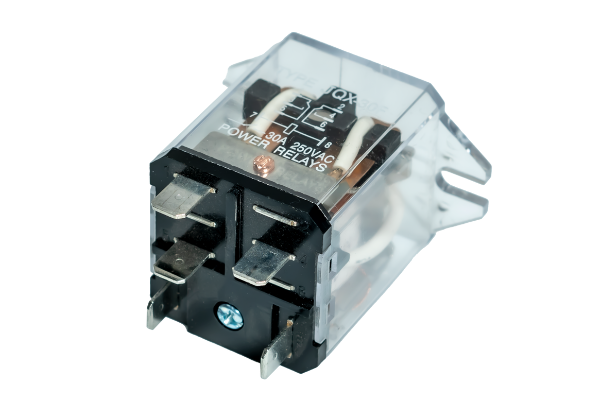

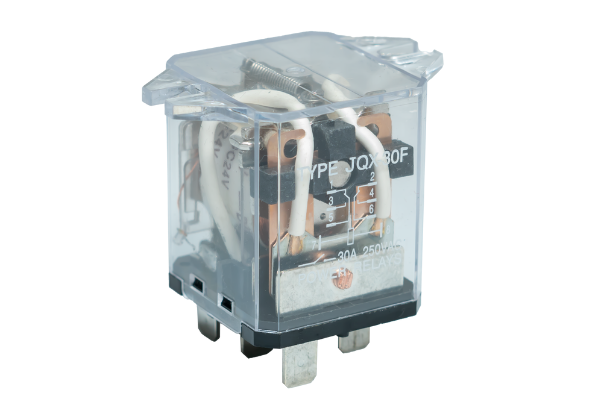

This SPDT (single pole, double throw) relay is an electromagnetic device that is used to separate two circuits electrically and connect them magnetically. Many different actuator control options utilize relays. Please refer to our wiring diagrams to find out which control setups require the use of relays. Each relay comes with Quick Disconnect Molex connectors. This relay is only compatible with 24 VDC actuator models. Please note that a socket is not included with this relay.
This SPDT (single pole, double throw) relay is an electromagnetic device that is used to separate two circuits electrically and connect them magnetically. Many different actuator control options utilize relays. Please refer to our wiring diagrams to find out which control setups require the use of relays. Each relay comes with Quick Disconnect Molex connectors. This relay is only compatible with 24 VDC actuator models. Please note that a socket is not included with this relay.
